Dimensions on the profile sketch in millimetres
PRODUCT PROPERTIES
| PROPERTIES | UNIT | 040 | 045 | 050 | 060 |
|---|---|---|---|---|---|
| MATERIAL THICKNESS | mm | 0.40 | 0.45 | 0.50 | 0.60 |
| WEIGHT | kg/m² | 3.57 | 4.01 | 4.64 | 5.35 |
TECHNICAL PROPERTIES
| MATERIAL | Heat-treated steel |
| CORROSION PROTECTION | Fully galvanised |
| COATING OUTSIDE | Polyester colour coating (POL) or Polyurethan colour coating (PUR) |
| COATING INSIDE | Protective lacquer (RSL) |
| EFFECTIVE WIDTH | 1100mm |
| STANDARD LENGTH | 0.80 to 8.40m Special lengths upon request |
| OPTION (on request) | Anti-condensation fleece (inner side of the roof version) |
| CERTIFICATES/STANDARDS | CE-marking Fire behaviour A1 according to EN 13501-1 |
PRODUCT CHARACTERISTICS

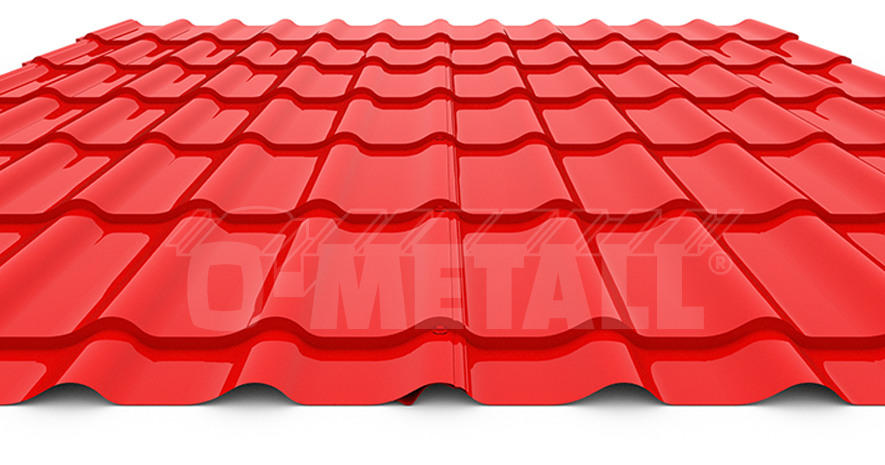

| This is perhaps the most beautiful shape for a metal roofing. The attractive design, the long durability, the absolute tightness and high storm resistance make the ECONOLINE metal roof tile an adequate alternative to the traditional tiled roof. The low weight and the continuous profiling up to a length of 6.40m, the effective covering width of 1.10m, the large selection of colours combined with an easy mounting make this product a real all-rounder for all roofs where aesthetics and a classic look play an important role. All our metal roof tiles boast high-quality corrosion protection systems according to the latest state of the art. As a standard, they are fully galvanised and coated with a polyester colour 25μm matt. Other coating systems are available. We recommend their use for roofs with a min. pitch of 8° or more. The metal roofing tile ECONOLINE is available with Aquatherm® anti-condensation fleece on the underside. We offer an extensive range of accessories for this product. These include parts in the same material as the roof tiles such as a round ridge cap, lacquered screws, profile fillers and sealing tapes. |
SUITABLE ACCESSORIES
