ISO-SYSTEM METALL ROOF TILES ECONOLINE

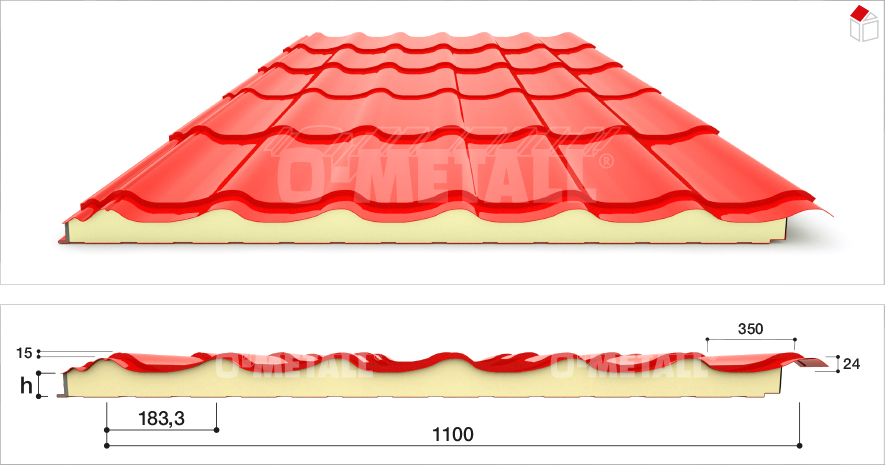

Dimensions on the profile sketch in millimetres

PRODUCT PROPERTIES – THE INSULATED METAL TILE

PROPERTIES	UNIT	IS40 EL	IS60 EL	IS80 EL	IS100 EL	IS120 EL
CORE THICKNESS (h)	mm	40	60	80	100	120
U-VALUE	W/m².K	0.47	0.33	0.26	0.21	0.18

*Attention! Our nominal thickness corresponds to the thickness of the isolation. It is measured at the leanest place of the panel.

TECHNICAL PROPERTIES

OUTER SHELL	Metal roof tile ECONOLINE, heat-treated fully galvanised steel Material thicknesses 0.50mm, Colour coating 35μm matt
INSULATION CORE	HCFC-free polyisocyanurate hard foam (PIR) Density approx. 40kg/m³, BSK B-s2-d0
INNER SHELL	Optical profile slightly lined – other on request, heat-treated fully galvanised steel Material thicknesses 0.50mm, DU-colour coating
OTHER	The production length is always a multiple of 350mm Minimum roof slope 8°
OPTION (on request)	Foam back-cut 100mm, 150mm or 200mm, mounting direction from right to left Inner shell available with Agristrong35^®

PRODUCT CHARACTERISTICS

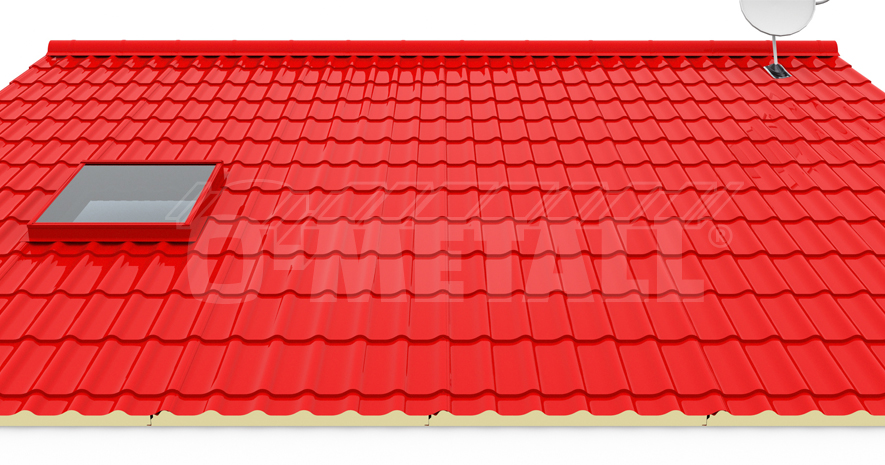

The O-METALL^® ISO SYSTEM ECONOLINE is a self-supporting, room-closing and heat-insulating metal roof tile. This sandwich panel resembles a classic roof with tiles but with the difference that with our ISO SYSTEM ECONOLINE you get a roof covering with thermal insulation material and an interior ceiling combined in one product. From a mounting but also a financial aspect our product presents more advantages towards a classic tile roof. As a result, it is often preferred to the last-mentioned. The polyisocyanurate rigid foam (PIR) core of our O-METALL^® ISO SYSTEM ECONOLINE is endlessly and shear-resistantly incorporated between the outer and inner metal covering sheets. This system is highly weather resistant, especially with regard to the climatic extremes that nowadays become more frequent. Notwithstanding, it has a very low dead weight. Of course, on this product safety systems (e.g. for chimney sweeps), snow guard systems and photovoltaic systems can also be installed. In summary, the O-METALL^® ISO SYSTEM ECONOLINE combines the advantages of a sandwich panel with the beautiful appearance of a roof tile.
