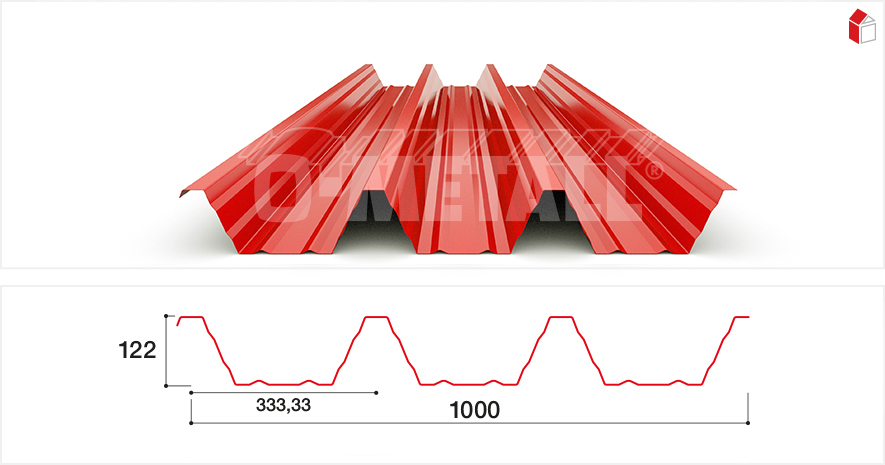

Dimensions on the profile sketch in millimetres
PRODUCT PROPERTIES
| PROPERTIES | UNIT | 075 | 088 | 100 |
|---|---|---|---|---|
| MATERIAL THICKNESS | mm | 0.75 | 0.88 | 1.00 |
| WEIGHT | kg/m² | 8.83 | 10.36 | 11.77 |
LONG SPAN PROFILE AVAILABLE
TECHNICAL PROPERTIES
| MATERIAL | Heat-treated steel |
| CORROSION PROTECTION | Fully galvanised |
| COATING OUTSIDE | Polyester coating |
| COATING INSIDE | Rear side protective coating (RSL) |
| EFFECTIVE WIDTH | 1000mm |
| OPTION (on request) | Anti-condensation fleece (inner side) Various coating systems Acoustic perforation |
| CERTIFICATES/STANDARDS | CE-marking Fire behaviour A1 according to EN 13501-1 |
PRODUCT CHARACTERISTICS
| • excellent corrosion protection • long service life • easy installation • several standard colours available • excellent static properties for high roof loads and/or large distances between supports • versatile use as outer roof skin (negative layer), as floor deck for insulation and outer roof skin (positive layer) or as wall profile for particularly high static requirements such as bulk material separation • this profile can be produced and delivered in excess lengths |
SUITABLE ACCESSORIES
