• TRAPEZOIDAL SHEET 30.200.5-N ROOF

  • TRAPEZOIDAL SHEET 30.200.5-P WALL

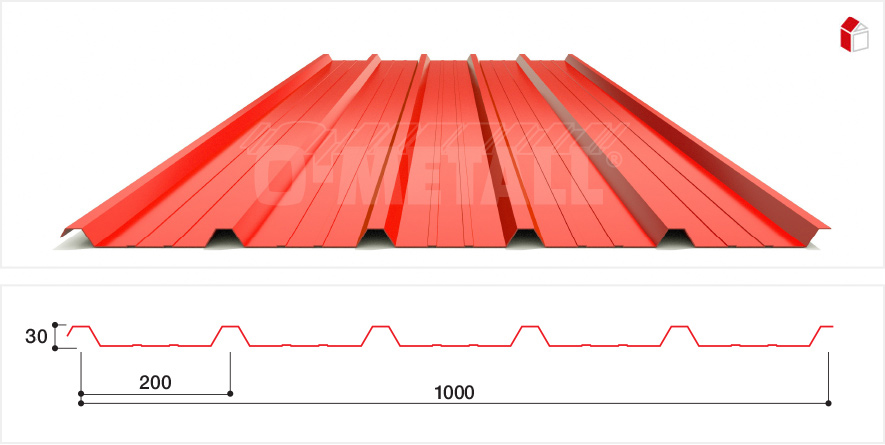

Dimensions on the profile sketch in millimetres

ROOF
WALL

PRODUCT PROPERTIES

PROPERTIESUNIT050060070
MATERIAL THICKNESSmm0.500.600.70
WEIGHTkg/m²4.795.756.70

TECHNICAL PROPERTIES

MATERIALHeat-treated steel
CORROSION PROTECTIONFully galvanised
COATING OUTSIDEPolyester colour coating
COATING INSIDERear side protective coating (RSL)
EFFECTIVE WIDTH1000mm
STANDARD LENGTH2.00 to 12.00m, Special lengths upon request
OPTION (on request)Anti-condensation fleece (inner side of the roof version)
Various coating systems
Aluminium version available
CERTIFICATES/STANDARDSCE-marking
Fire behaviour A1 according to EN 13501-1

PRODUCT CHARACTERISTICS

• particularly elegant and cost-effective corrugated sheet • excellent corrosion protection • long service life • easy installation • large selection of standard colours • low dead weight in combination with very good static properties • suitable as support for photovoltaic systems • can be mounted horizontally or vertically (wall)

SUITABLE ACCESSORIES

ALTERNATIVE PRODUCT

As an alternative to this product we can offer you the profile 35.250.4.
