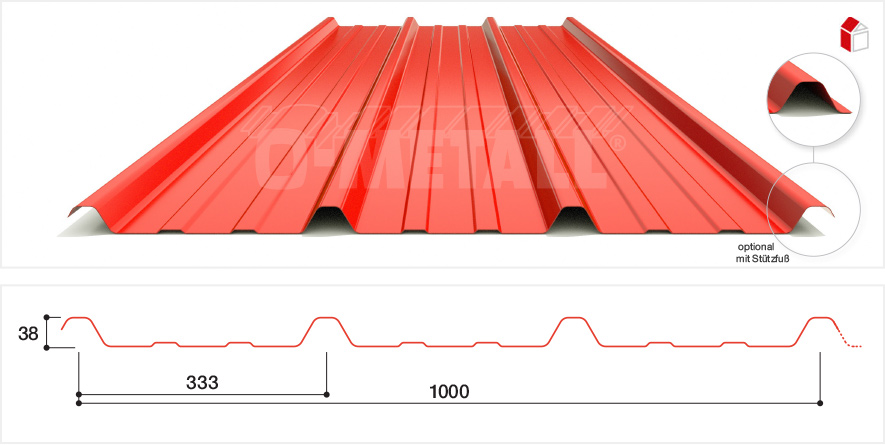

• TRAPEZOIDAL SHEET 38.333.3-N ROOF

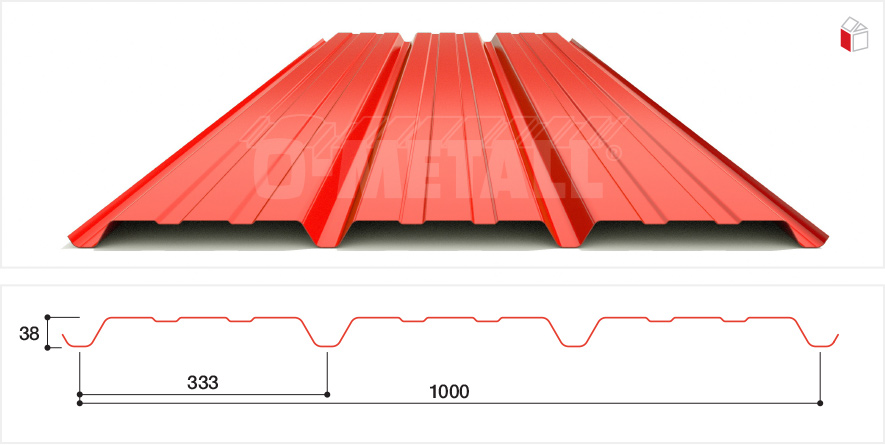

  • TRAPEZOIDAL SHEET 38.333.3-P WALL

Dimensions on the profile sketch in millimetres

ROOF
WALL

PRODUCT PROPERTIES

PROPERTIESUNIT050060075088100
MATERIAL THICKNESSmm0.500.600.750.881.00
WEIGHTkg/m²4.655.866.988.199.30

TECHNICAL PROPERTIES

MATERIALHeat-treated steel
CORROSION PROTECTIONFully galvanised
COATING OUTSIDEPolyester colour coating
COATING INSIDERear side protective coating (RSL)
EFFECTIVE WIDTH1000mm
STANDARD LENGTH2.00 to 12.00m, Overlengths on request
OPTION (on request)Anti-condensation fleece (inner side of the roof version)
Various coating systems
Available with support foot for better mounting
CERTIFICATES/STANDARDSCE-marking
Fire behaviour A1 according to EN 13501-1

PRODUCT CHARACTERISTICS

• particularly cost-effective corrugated sheet • excellent corrosion protection • long service life • easy installation • several standard colours available • low dead weight in combination with very good static properties • high rainproof thanks to the wide sheet valley and the high upper belt • suitable as support for photovoltaic systems • can be mounted horizontally or vertically (wall)

SUITABLE ACCESSORIES

ALTERNATIVE PRODUCT

As an alternative to this product we can offer you the Profile 45.333.3.
