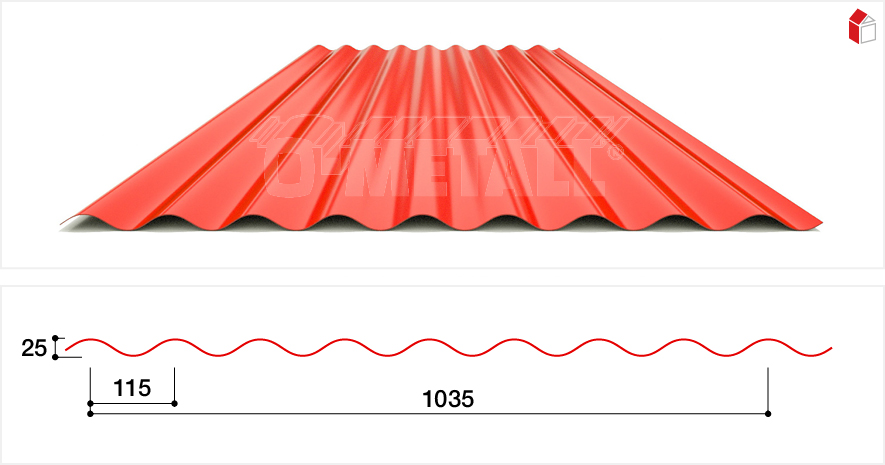

Dimensions on the profile sketch in millimetres
PRODUCT PROPERTIES
| PROPERTIES | UNIT | 063 | 075 | 088 | 100 |
|---|---|---|---|---|---|
| MATERIAL THICKNESS | mm | 0.63 | 0.75 | 0.88 | 1.00 |
| WEIGHT | kg/m² | 5.66 | 6.74 | 7.91 | 8.99 |
HORIZONTAL MOUNTING
TECHNICAL PROPERTIES
| MATERIAL | Heat-treated steel |
| CORROSION PROTECTION | Fully galvanised |
| COATING OUTSIDE | Polyester coating |
| COATING INSIDE | Rear side protective coating (RSL) |
| EFFECTIVE WIDTH | 1035mm |
| STANDARD LENGTH | 2.00 to 13.60m, Overlengths on request |
| OPTION (on request) | Various coating systems |
| CERTIFICATES/STANDARDS | CE-marking Fire behaviour A1 according to EN 13501-1 |
PRODUCT CHARACTERISTICS
| • excellent corrosion protection • long service life • easy installation • large selection of standard colours • low dead weight • can be mounted horizontally or vertically (wall) |
SUITABLE ACCESSORIES
ALTERNATIVE PRODUCT
As an inexpensive alternative to this product we can offer you the Frequence 18.76.
