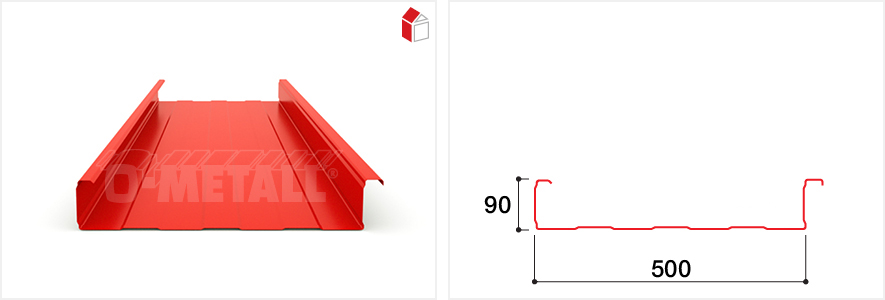

Dimensions on the profile sketch in millimetres
PRODUCT PROPERTIES
| PROPERTIES | UNIT | 070 | 075 | 088 | 100 | 113 |
|---|---|---|---|---|---|---|
| MATERIAL THICKNESS | mm | 0,70 | 0.75 | 0.88 | 1.00 | 1.13 |
| WEIGHT | kg/m² | 8.24 | 8.83 | 10.36 | 11.78 | 13.31 |
TECHNICAL PROPERTIES
| MATERIAL | Heat-treated steel |
| CORROSION PROTECTION | Fully galvanised |
| COATING OUTSIDE | DU-coating |
| COATING INSIDE | Rear side protective coating (RSL) (Filling side for insulation) |
| EFFECTIVE WIDTH | 500mm |
| OPTION (on request) | Acoustic perforation |
SUITABLE ACCESSORIES
